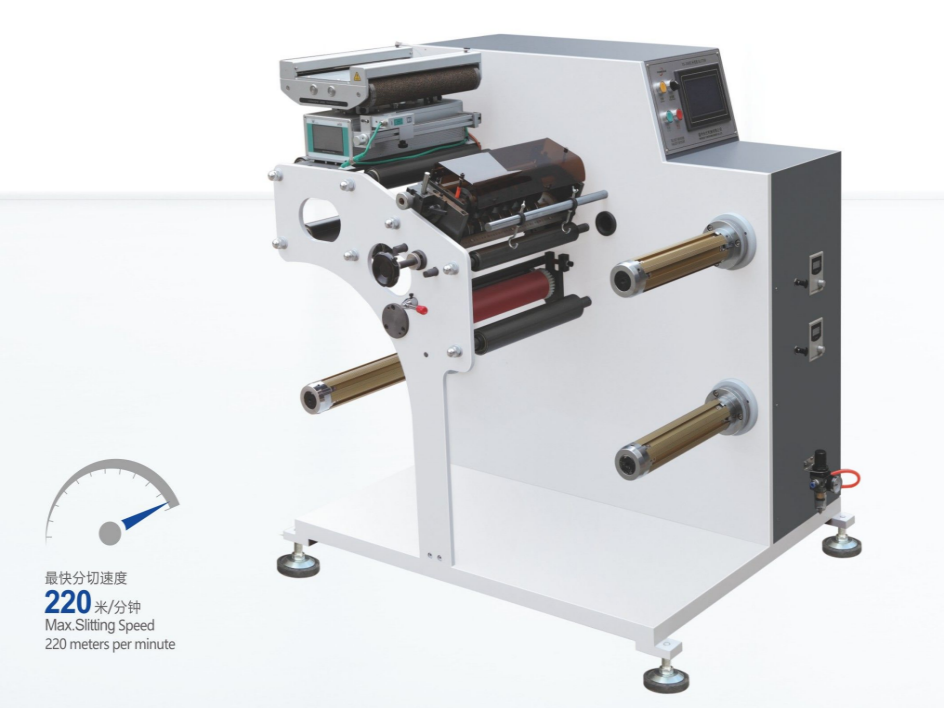

Automatic medium-speed cutting machine

Scope Of Application:
The self-developed narrow label high-speed slitting machine, high-end full service winding and unwinding taper tension system,imported famous brand process deviation correction system, dual winding shaft fully automatic rotation and displacement device, and standby shaft preparation greatly improve production efficiency. It supports the exchange of various specifications of inflatable shafts at will, and supports meter counting, counting, electrostatic treatment, material reduction or parking.
Features:
1. Unwinding+deviation correction: adopts an independent uniform taper tension control system, with preset automatic material reduction or parking. Deviation correction adopts ultrasonic edge guidance.
2. Cutting mechanism: Convenient circular knife cutting mechanism, fast disassembly and assembly, optional cutting and exchange device,and comes with a high-pressure vacuum waste suction system.
3. Reeling: The taper tension control system and rotating device greatly save the time for changing rolls, ensuring the alignment of labels and paper cores during roll changing.
4. Counting: The calculation system adopts a well-known German brand, ensuring a calculation accuracy of one thousandth. Transparent materials require additional purchase of special sensors.

  • Model JY-350 JY-450
  • Max.Sliting Speed 220m/min 220m/min
  • Max web width 350mm 450mm
  • Min.Slitting width 16mm 16mm
  • Blades installed 8 sets 8 sets
  • Max.Unwinding Dia 600mm 600mm
  • Max.Rewinding Dia 600mm 600mm
  • Air supply 0.8mpa 0.8mpa
  • Weight 600kg 700kg
  • Size(LxWXH) 1370x1000x1160mm 1370x1100x1160mm
Contact us
Product Details

Automatic Medium-Speed Cutting Machine

The Automatic Medium-Speed Cutting Machine is a reliable and cost-effective solution designed for precise cutting of paper, film, adhesive labels, and flexible packaging materials.
It combines stable performance, easy operation, and high accuracy, making it ideal for medium-scale production environments.

Key Features:

  • Stable cutting performance: Cutting speed up to 80–100 m/min, ensuring efficient output with consistent quality.

  • Fully automatic process: Integrates automatic feeding, positioning, cutting, and collecting, reducing manual operation.

  • Precision control system: Servo motor and PLC with touch screen ensure accurate positioning and smooth cutting (±0.15 mm).

  • User-friendly interface: Easy to set parameters, monitor operations, and switch between material types.

  • Energy-saving & durable: Optimized mechanical design reduces wear and power consumption for long-term operation.

  • Flexible adaptability: Suitable for paper, PET, BOPP, PVC, adhesive film, and other roll materials.

    Applications:

    Widely used in:

    • Label and sticker production

    • Printing and packaging industries

    • Film and flexible material converting

    • Paper and nonwoven product processing

    The Automatic Medium-Speed Cutting Machine delivers efficient, precise, and stable performance, offering an ideal balance between cost, speed, and reliability for medium-scale production operations.
