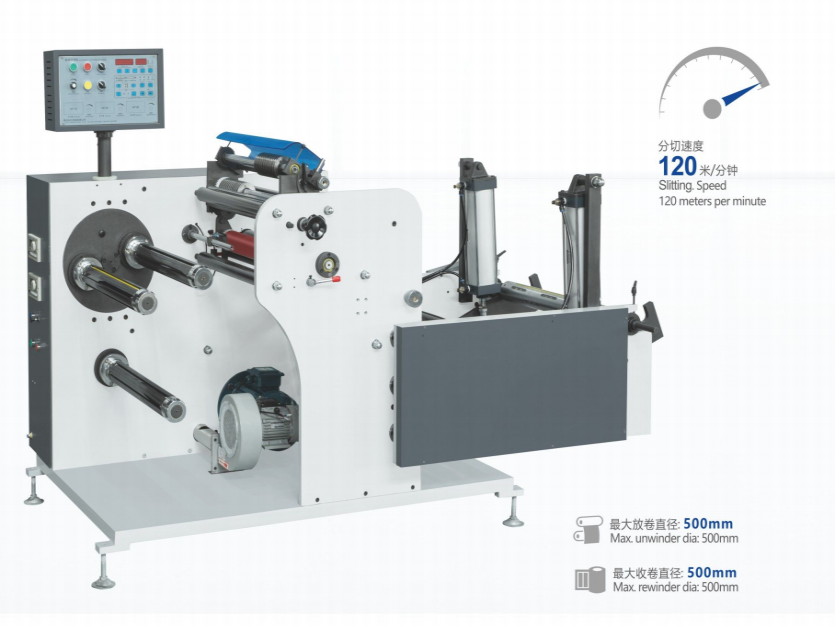

Automatic divider machine

※Product Introduction:
Our self-developed products include a narrow label high-speed slitting machine, a high-end fully servol winding and unwinding taper tension system, an imported famous brand process correction system, al dual winding shaft fully automatic rotation and displacement device, and a preparation shaft that greatlyl improves production efficiency. We support the free exchange of various specifications of inflatablel shafts, including meter counting, counting, electrostatic treatment, material reduction or parking.
※Features: JY-550 automatic slitting machine is a supporting product of automatic die-cutting machine, which is suitable for cutting narrow width paper, It has functions such as automatic meter setting, automatic shutdown,and automatic deviation correction.The entire machine is characterized by compact structure, fast speed, high efficiency, accurate cutting, simple operation, and smooth operation.

  • Model JY-550
  • Slitting Speed 120m/min
  • Max.width 450mm
  • Max.Unwinding Diameter 500mm
  • Max.Rewinding Diameter 500mm
  • Min.Slitting Width 16mm
  • Max.Slitting Width 410mm
  • Accuracy Rate ±0.10mm
  • Voltage 220v
  • Main Motor Power 2kw
  • Weight 620kg
  • Dimension 1340x1125x1330mm

Automatic Divider Machine

The Automatic Divider Machine is a precision-engineered equipment designed for high-efficiency material cutting, slitting, and sectioning operations. It integrates intelligent control, automatic feeding, and high-accuracy positioning to ensure smooth, clean, and consistent cutting results. Ideal for paper, film, plastic, and composite materials, this machine delivers stable performance and outstanding productivity.

Equipped with an advanced servo motor system and a user-friendly touch screen interface, it allows operators to set cutting parameters easily, monitor real-time production status, and ensure safety throughout the process. The high-precision tension control system guarantees even and accurate division without material deformation.
Applications:
Widely used in packaging, printing, label, and industrial material processing industries for high-speed, precise cutting and dividing operations.
